prometheus 配置钉钉告警

prometheus的alertmanager本身不支持直接使用钉钉告警的方式，若配置钉钉告警需要webhook插件做为组件。

安装钉钉告警webhook插件

由于我的prometheus和alertmanager都安装在kubernetes里面，所以钉钉插件也安装在k8s平台里面。若需要其他安装方式，可以参考
钉钉插件github仓库

  • vim dingtalk-alert-deployment.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: dingtalk-alert
  name: dingtalk-alert
  namespace: monitor
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dingtalk-alert
  template:
    metadata:
      labels:
        app: dingtalk-alert
    spec:
      containers:
      - image: timonwong/prometheus-webhook-dingtalk
        command:
        - /bin/prometheus-webhook-dingtalk
        - --ding.profile=webhook1=https://oapi.dingtalk.com/robot/send?access_token=da1cc37cd155f73112bcbf4aa4be49c8c400786f1b38908a15fa1e9be0eee51
        - --template.file=/usr/share/prometheus-webhook-dingtalk/template/default.tmpl
        imagePullPolicy: IfNotPresent
        name: dingtalk-alert
        ports:
        - containerPort: 8086
          name: service
          protocol: TCP
        resources:
          limits:
            cpu: 100m
            memory: 512Mi
          requests:
            cpu: 50m
            memory: 128Mi
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /usr/share/prometheus-webhook-dingtalk/template/default.tmpl
          name: dingtalk-tmpl
          subPath: default.tmpl
      dnsPolicy: ClusterFirst
      volumes:
      - configMap:
          name: dingtalk-alert-configmap
        name: dingtalk-tmpl
  • 注意： –ding.profile指定钉钉机器人的url，其中webhook1为自定义名称，在配置alertmanager规则中指定webhook时会使用
  • 注意：–template.file指定发送告警模版文件
  • [x]注意：–ding.profile后钉钉机器人url不可有引号，不然会报404错误，非k8s安装时需要加引号
  • vim dingtalk-configmap.yml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    apiVersion: v1
    data:
      default.tmpl: |
        {{ define "__subject" }}[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}] {{ .GroupLabels.SortedPairs.Values | join " " }} {{ if gt (len .CommonLabels) (len .GroupLabels) }}({{ with .CommonLabels.Remove .GroupLabels.Names }}{{ .Values | join " " }}{{ end }}){{ end }}{{ end }}
        {{ define "__alertmanagerURL" }}{{ .ExternalURL }}/#/alerts?receiver={{ .Receiver }}{{ end }}

        {{ define "__text_alert_list" }}{{ range . }}
        **告警**
        {{ range .Annotations.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
        {{ end }}

        **标签**
        {{ range .Labels.SortedPairs }}> - {{ .Name }}: {{ .Value | markdown | html }}
        {{ end }}
        **Source:** **http://grafana.monitor.bj.univer.top/d/xLrfYirmk/a-li-yun-gao-jing?orgId=1**

        {{ end }}{{ end }}

        {{ define "ding.link.title" }}{{ template "__subject" . }}{{ end }}
        {{ define "ding.link.content" }}#### \[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}\] **[{{ index .GroupLabels "alertname" }}]({{ template "__alertmanagerURL" . }})**
        {{ template "__text_alert_list" .Alerts.Firing }}
        {{ end }}
    kind: ConfigMap
    metadata:
      creationTimestamp: 2019-05-13T07:15:10Z
      labels:
        app: dingtalk-alert
      name: dingtalk-alert-configmap
      namespace: monitor
  • vim dingtalk-service.yml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    apiVersion: v1
    kind: Service
    metadata:
      creationTimestamp: 2019-05-13T07:15:10Z
      labels:
        app: dingtalk-alert
      name: dingtalk-alert-svc
      namespace: monitor
      resourceVersion: "31476279"
      selfLink: /api/v1/namespaces/monitor/services/dingtalk-alert-svc
      uid: d81b6783-754e-11e9-8566-00163e10fec4
    spec:
      clusterIP: 172.19.1.47
      externalTrafficPolicy: Cluster
      ports:
      - name: service
        nodePort: 31221
        port: 8060
        protocol: TCP
        targetPort: 8060
      selector:
        app: dingtalk-alert
      sessionAffinity: None
      type: NodePort

修改alertmanager配置

  • alertmanager增加webhook选项，指定钉钉插件
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    alertmanager.yml: |
      global:
          resolve_timeout: 5m
      receivers:
      - name: webhook
        webhook_configs:
        - url: http://dingtalk-alert-svc:8060/dingtalk/ops/send
          send_resolved: true
      route:
        group_interval: 5m
        group_wait: 10s
        receiver: webhook
        repeat_interval: 3h

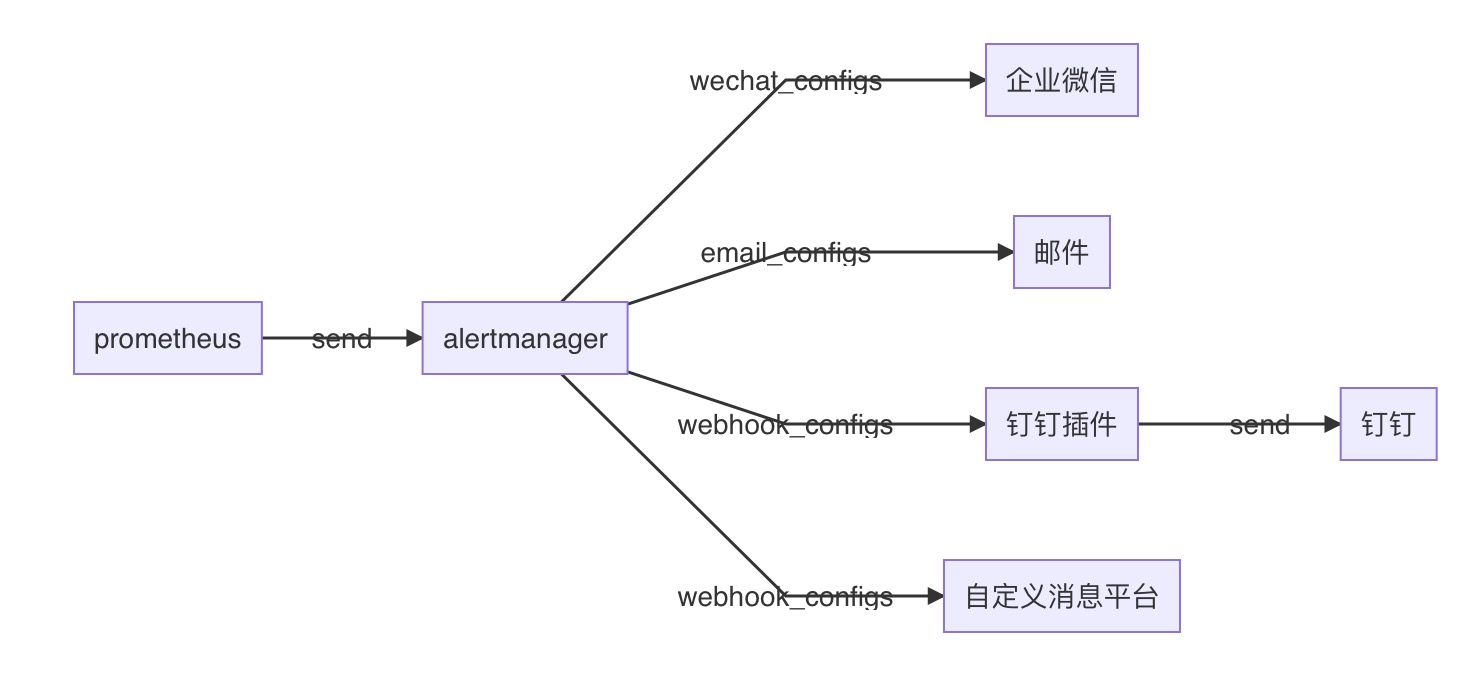

    整体结构如下
